63-6855-46 Insulation DC-DC Converter Vout: 3.3 V dc 9 to 36 V dc 8 W 24 V dc JTF0824S3V3
Product Description
Product Model: 63-6855-46Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6855-46
Product Brand: XP Power
Features

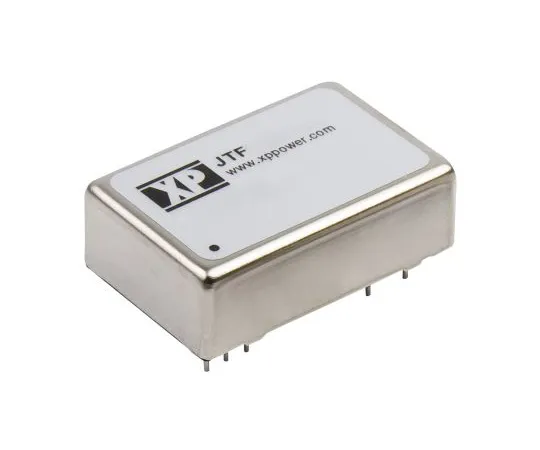

- XP Power-JTF08 Series Insulated DC-DC Converter
- XP Power's JTF08 series is a reliable single/dual output 8W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 90%. It is compact, has a wide input range of 4:1, has a standard remote on/off function, and has an operating temperature of -40 to +105 °C.
- 8 W Insulated DC-DC Converter 1600 V dc Insulated High Power Density Single and Dual Output 4:1 Wide Input Range Operating Temperature Range: -40 → +105 °C High Efficiency 90% Industry Standard Package Substrate Mounting Standard Remote On/Off
Spec
- Quantity: 1 piece
- Output Voltage: 3.3 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 8W
- Output Current: 2A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 83%
- Package: DIP
- Road regulation: ± 0.5%
- Maximum temperature: + 105 degrees C
- Depth: 10.16 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7510
