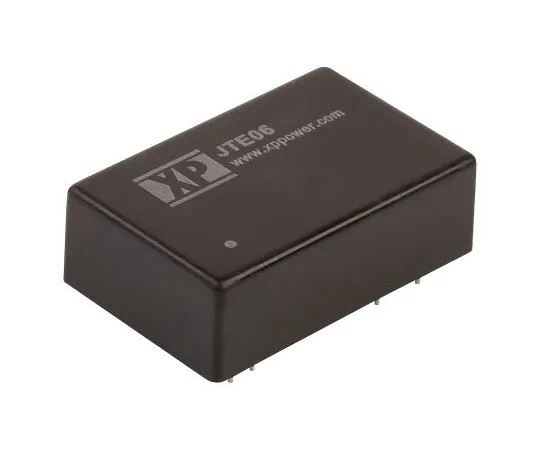

63-6855-24 Insulation DC-DC Converter Vout: ± 3.3 V dc 9 to 36 V dc 6 W 24 V dc JTE0624D03
Product Description
Product Model: 63-6855-24Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6855-24
Product Brand: XP Power
Features
- XP Power-JTE06 Series Insulated DC-DC Converter
- XP Power's JTE06 series is a reliable single/dual output 6W insulated DC-DC converter. Included in the industry-standard DIP-24 package, it features a breakdown voltage of 1500 V dc and high efficiency of up to 84%. It is compact, has a 4:1 input range, and a wide operating temperature of -40 to +100 °C.
- 6 W Insulated DC-DC Converter 1500 V dc Insulated, 3000 V dc Optional Single and Dual Output 4:1 Wide Input Range Operating Temperature Range: -40 → +100 °C High Efficiency Up to 84% Industry Standard DIP-24 Package Substrate Mounting Optional Metal Case
Spec
- Quantity: 1 piece
- Output Voltage: ± 3.3 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- Rating Power: 6W
- Output current: ± 909 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 78%
- Package: DIP
- Minimum temperature: -40 degrees C
- Maximum temperature: + 100 degrees C
- Width: 20.32 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7488
