63-6855-16 Insulation DC-DC Converter Vout: ± 12 V dc 9 to 18 V dc 10 W 12 V dc JHM1012D12
Electronic/Electrical Parts and Controll Equipments

63-6855-16 Insulation DC-DC Converter Vout: ± 12 V dc 9 to 18 V dc 10 W 12 V dc JHM1012D12

model: 63-6855-16
brand: XP Power

Product Description

Product Model: 63-6855-16Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6855-16
Product Brand: XP Power

Features

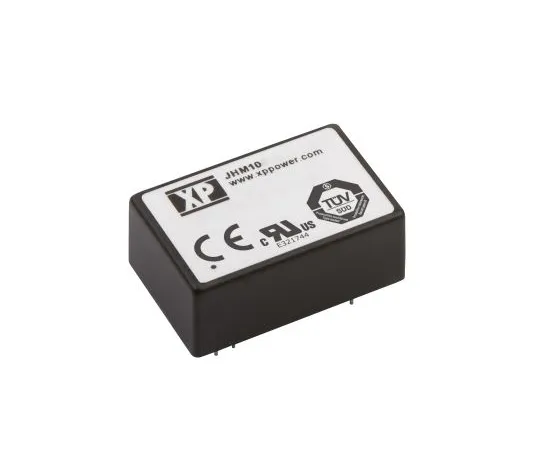

  • XP Power-JHM10 Series Insulated DC-DC Converter
  • XP Power's JHM10 series is a reliable 10 W insulated DC-DC converter. Included in the industry-standard DIP-24 package, this series boasts 4000 V ac of reinforced insulation and conforms to international medical standards. Patient leakage current is 2 μA, operating temperature is -40 to +80 °C, and it is certified by IEC60601-1, 3rd edition of safety standard.
  • 10 W Insulated DC-DC Converter 4000 V ac Enhanced Insulation International Medical Standard Patient Leakage Current: 2 μA Operating Temperature Range: -40 → +80 °C IEC60601-1, Edition 3 Safety Standard DIP-24 Package EN55011 Level A, Substrate Mounting without External Parts

Spec

  • Quantity: 1 piece
  • Output Voltage: ± 12 V dc
  • Input voltage range: 9 to 18 V dc
  • Input voltage nominal: 12 V dc
  • insulation Voltage: 4 kV ac
  • Rating Power: 10 W
  • Output current: ± 420 mA
  • Mounting type: through hole
  • Number of outputs: 2
  • Medical standards certification: Yes
  • Approved for railway ***: None
  • Package: DIP
  • Load regulation: ± 1 (10 to 100% Load)%, ± 2 (0 to 10% Load)%
  • Maximum temperature: + 80 degrees C
  • Series: JHM
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7480
