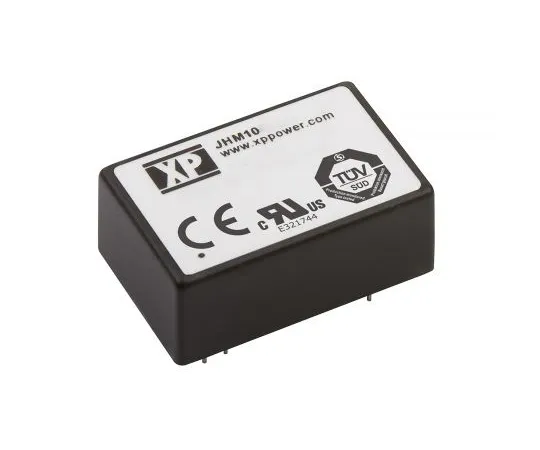

63-6855-14 Insulation DC-DC Converter Vout: 5 V dc 4.5 to 9 V dc 10 W 5 V dc JHM1005S05
Product Description
Product Model: 63-6855-14Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6855-14
Product Brand: XP Power
Features
- XP Power-JHM10 Series Insulated DC-DC Converter
- XP Power's JHM10 series is a reliable 10 W insulated DC-DC converter. Included in the industry-standard DIP-24 package, this series boasts 4000 V ac of reinforced insulation and conforms to international medical standards. Patient leakage current is 2 μA, operating temperature is -40 to +80 °C, and it is certified by IEC60601-1, 3rd edition of safety standard.
- 10 W Insulated DC-DC Converter 4000 V ac Enhanced Insulation International Medical Standard Patient Leakage Current: 2 μA Operating Temperature Range: -40 → +80 °C IEC60601-1, Edition 3 Safety Standard DIP-24 Package EN55011 Level A, Substrate Mounting without External Parts
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 4.5 to 9 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 4 kV ac
- Rating Power: 10 W
- Output Current: 2A
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: Yes
- Approved for railway ***: None
- Package: DIP
- Load regulation: ± 1 (10 to 100% Load)%, ± 2 (0 to 10% Load)%
- Maximum temperature: + 80 degrees C
- Width: 20.32 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7478
