63-6855-02 Insulation DC-DC Converter Vout: 5 V dc 18 to 36 V dc 15 W 24 V dc JCM1524S05
Electronic/Electrical Parts and Controll Equipments

63-6855-02 Insulation DC-DC Converter Vout: 5 V dc 18 to 36 V dc 15 W 24 V dc JCM1524S05

model: 63-6855-02
brand: XP Power

Product Description

Product Model: 63-6855-02Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6855-02
Product Brand: XP Power

Features

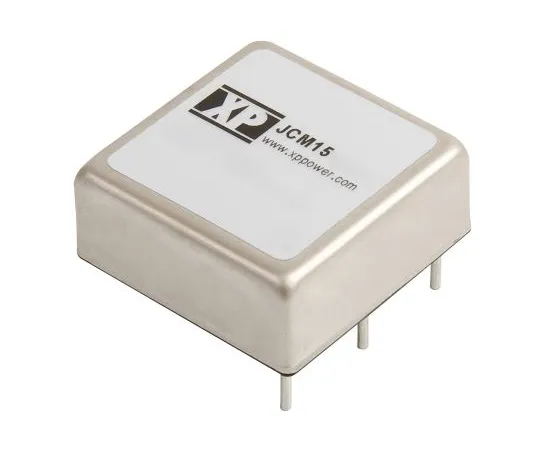

  • XP Power-JCM15 Series Insulated DC-DC Converter
  • XP Power's JCM15 series is an excellent single and dual output 15 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 89%. It is compact, has a 2:1 input voltage range, and features extremely high power density.
  • 15 W Insulated DC-DC Converter 1600 V dc Insulation Single and Dual Output 2:1 Input Range Operating Temperature Range: -40 → +105 °C High Efficiency Up to 89% Very High Power Density Substrate Mounting

Spec

  • Quantity: 1 piece
  • Output Voltage: 5V dc
  • Input voltage range: 18 to 36 V dc
  • Input voltage nominal: 24 V dc
  • insulation Voltage: 1600 V dc
  • Rating Power: 15 W
  • Output Current: 3A
  • Mounting type: through hole
  • Number of outputs: 1
  • Efficiency: 87%
  • Road regulation: ± 0.5%
  • Maximum temperature: + 105 degrees C
  • Series: JCM
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7466
