63-6854-98 Insulation DC-DC Converter Vout: ± 5 V dc 18 to 36 V dc 15 W 24 V dc JCM1524D05
Product Description
Product Model: 63-6854-98Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6854-98
Product Brand: XP Power
Features

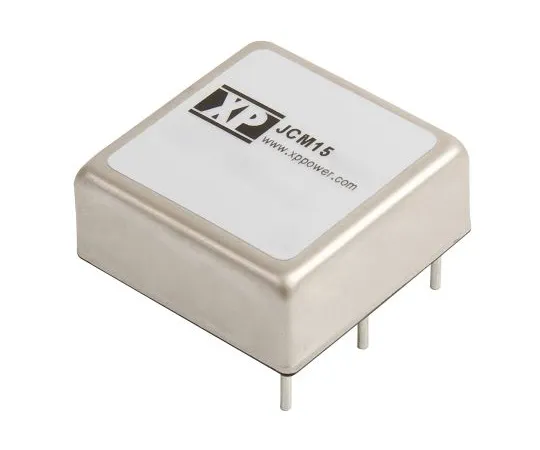

- XP Power-JCM15 Series Insulated DC-DC Converter
- XP Power's JCM15 series is an excellent single and dual output 15 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 89%. It is compact, has a 2:1 input voltage range, and features extremely high power density.
- 15 W Insulated DC-DC Converter 1600 V dc Insulation Single and Dual Output 2:1 Input Range Operating Temperature Range: -40 → +105 °C High Efficiency Up to 89% Very High Power Density Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: ± 5V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 15 W
- Output Current: ± 1.5 A
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 85%
- Road regulation: ± 1%
- Maximum temperature: + 105 degrees C
- Series: JCM
- RoHS compliance status: Compliance
- Securities Code: 122 -7463
