63-6854-79 Insulation DC-DC Converter Vout: 5 V dc 9 to 18 V dc 40 W 12 V dc JCK4012S05
Product Description
Product Model: 63-6854-79Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6854-79
Product Brand: XP Power
Features

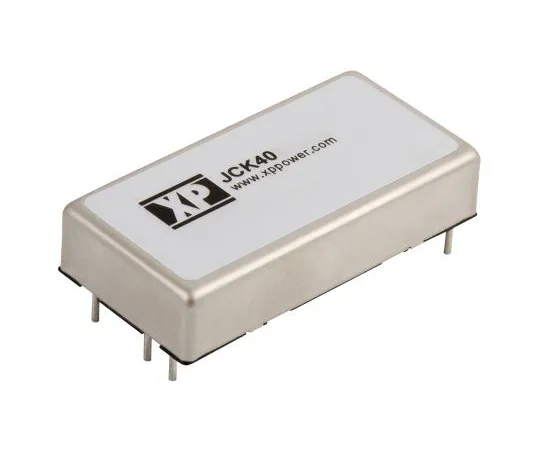

- XP Power-JCK40 Series Insulated DC-DC Converter
- XP Power's JCK40 series is a reliable 40 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 92%. Compact, 2:1 input voltage range, remote on/off setting.
- 40 W Insulated DC-DC Converter 1600 V dc Insulation 2:1 Input Range Single and Dual Output Remote On/Off Operating Temperature Range: -40 → +70 °C High Efficiency Up to 92% Very High Power Density Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1600 V dc
- Rating Power: 40 W
- Output Current: 8 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 91%
- Road regulation: ± 0.5%
- Maximum temperature: + 70 degrees C
- Series: JCK
- RoHS compliance status: Compliance
- Securities Code: 122 -7444
