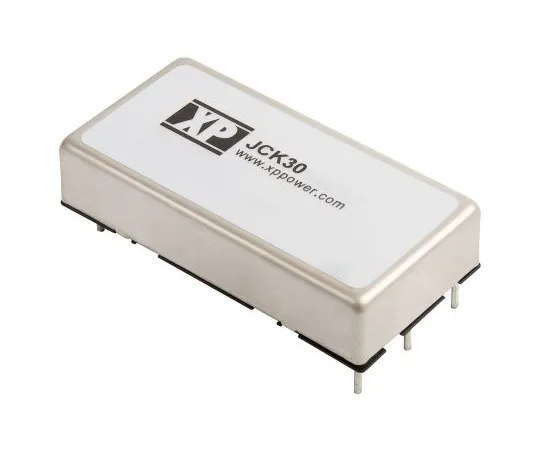

63-6854-77 Insulation DC-DC Converter Vout: 12 V dc 36 to 75 V dc 30 W 48 V dc JCK3048S12
Product Description
Product Model: 63-6854-77Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6854-77
Product Brand: XP Power
Features
- XP Power-JCK30 Series Insulated DC-DC Converter
- XP Power's JCK30 series is a reliable 30 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 92%. Compact, 2:1 input voltage range, remote on/off setting.
- 30 W Insulated DC-DC Converter 1600 V dc Insulation 2:1 Input Range Single and Dual Output Remote On/Off Operating Temperature Range: -40 → +100 °C Up to 92% Efficient Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 36 to 75 V dc
- Input voltage nominal: 48 V dc
- insulation Voltage: 1600 V dc
- Rating Power: 30 W
- Output Current: 2.5 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 91%
- Road regulation: ± 0.5%
- Maximum temperature: + 75 degrees C
- Length: 50.8 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7442
