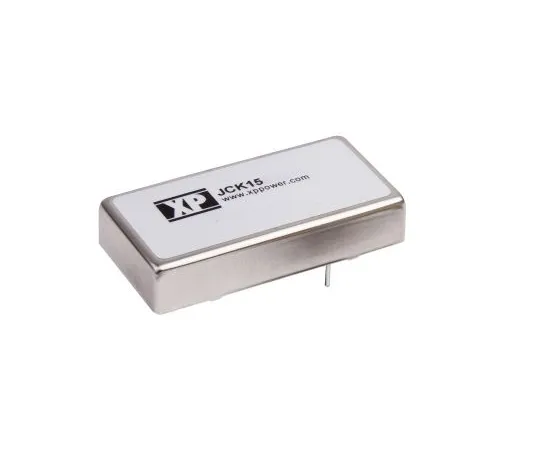

63-6854-55 Insulation DC-DC Converter Vout: 12 V dc 18 to 36 V dc 15 W 24 V dc JCK1524S12
Product Description
Product Model: 63-6854-55Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6854-55
Product Brand: XP Power
Features
- XP Power-JCK15 Series Insulated DC-DC Converter
- XP Power's JCK15 series is a reliable 15 W insulated DC-DC converter. Packaged in industry-standard packaging, it features 1500 V dc breakdown voltage and high efficiency of up to 89%. It is compact, has a 2:1 input voltage range, and has continuous short-circuit protection.
- 15 W Insulated DC-DC Converter 1500 V dc Insulation 2:1 Input Range Single and Dual Output Operating Temperature Range: -40 → +100 °C Continuous Short Circuit Protection High Efficiency Substrate Mounting Up to 89%
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1600 V dc
- Rating Power: 15 W
- Output Current: 1.25 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 89%
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Series: JCK
- RoHS compliance status: Compliance
- Securities Code: 122 -7420
