63-6854-35 Insulation DC-DC Converter Vout: 5 V dc 9 to 18 V dc 10 W 12 V dc JCJ1012S05
Product Description
Product Model: 63-6854-35Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6854-35
Product Brand: XP Power
Features

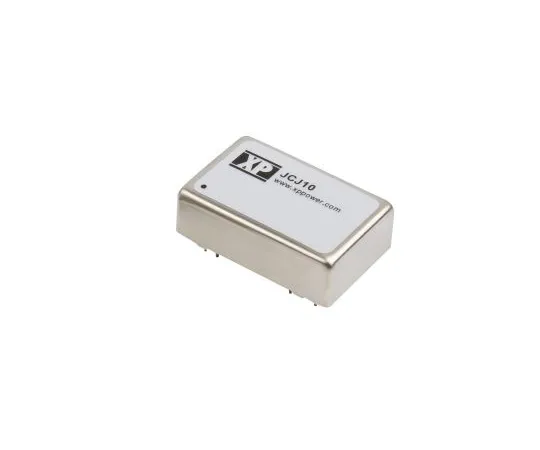

- XP Power JCJ10 Series Insulated DC-DC Converter
- XP Power's JCJ10 series is a reliable 10 W insulated DC-DC converter. Included in the industry-standard footprint DIP24 package, it features a 2:1 input voltage range. All DC-DC converters in the series require no minimum load and are available in single output and dual output.
- 10 W Insulated DC-DC Converter 1500 V dc Insulation 2:1 Input Range DIP-24 Package Single and Dual Output Operating Temperature Range: -40 → +70 °C Continuous Short Circuit Protective Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1500 V dc
- Rating Power: 10 W
- Output Current: 2A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 86%
- Package: DIP
- Road regulation: ± 0.5%
- Maximum temperature: + 100 degrees C
- Length: 31.75 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -7400
