63-6854-12 Insulation DC-DC Converter Vout: 5 V dc 13.5 to 16.5 V dc 1 W 15 V dc ISE1505A
Product Description
Product Model: 63-6854-12Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6854-12
Product Brand: XP Power
Features

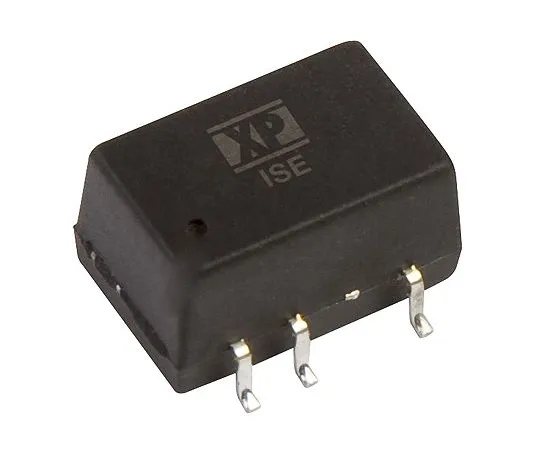

- XP Power-ISE Series Insulated DC-DC Converter
- The ISE series of XP Power is a reliable 1W insulated DC-DC converter. It has a 1500 V dc breakdown voltage and is packaged in a compact SMD package with industry-standard pin alignment. All are single output, and the operating temperature is -40 to +100 °C.
- 1 W Insulated DC-DC Converter with 1500 V dc Insulation Voltage, 3000 V dc Option Single Output Small SMD Package Operating Temperature Range: -40 → +105 °C Maximum Efficiency 81% Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 13.5 to 16.5 V dc
- Input voltage nominal: 15 V dc
- insulation Voltage: 1500 V dc
- Rating Power: 1W
- Output current: 200 mA
- Mounting type: Surface mounting
- Number of outputs: 1
- Efficiency: 80%
- Package: SMD
- Minimum temperature: -40 degrees C
- Maximum temperature: + 105 degrees C
- Series: ISE
- RoHS compliance status: Compliance
- Securities Code: 122 -7374
