Electronic/Electrical Parts and Controll Equipments
63-6853-55 Insulation DC-DC Converter Vout: ± 15 V dc 18 to 36 V dc 1 W 24 V dc ISB0124D15
Product Description
Product Model: 63-6853-55Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6853-55
Product Brand: XP Power
Features

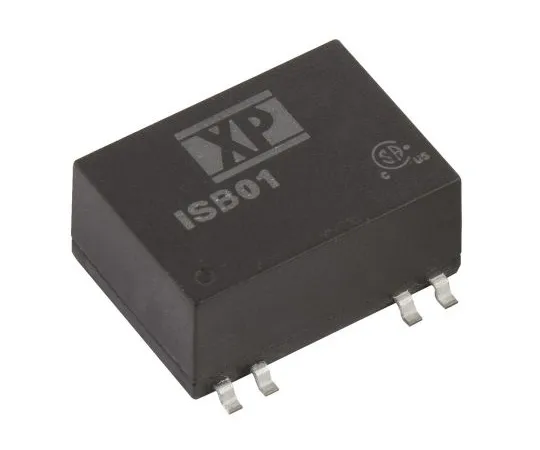

- XP Power-ISB01 Series Insulated DC-DC Converter
- The ISB01 series of XP Power is a reliable and stable single/dual output 1W insulated DC-DC converter. It is packaged in a compact SMD package and features 1500 V dc breakdown voltage and high efficiency of up to 82%. Compact, 2:1 input range, remote on/off setting, operating temperature -40 to +95 °C.
- 1 W Insulated DC-DC Converter 1500 V dc Insulation Voltage 2:1 Input Range Stable Single/Dual Output Operating Temperature Range: -40 → +95 °C Remote On/Off Maximum Efficiency: 82% Small SMD Package with Tape Package and Reel Package Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc @ 60 s, 1.8 kV dc @ 1 s
- Rating Power: 1W
- Output current: ± 33 mA
- Mounting type: Surface mounting
- Number of outputs: 2
- Efficiency: 82%
- Package: SMD
- Road regulation: ± 1%
- Maximum temperature: + 95 degrees C
- Series: ISB
- RoHS compliance status: Compliance
- Securities Code: 122 -7315
