63-6853-54　Insulation DC-DC Converter Vout: ± 12 V dc 18 to 36 V dc 1 W 24 V dc　ISB0124D12
Electronic/Electrical Parts and Controll Equipments

63-6853-54　Insulation DC-DC Converter Vout: ± 12 V dc 18 to 36 V dc 1 W 24 V dc　ISB0124D12

model: 63-6853-54
brand: XP Power
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-6853-54Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-6853-54
Product Brand: XP Power

Features

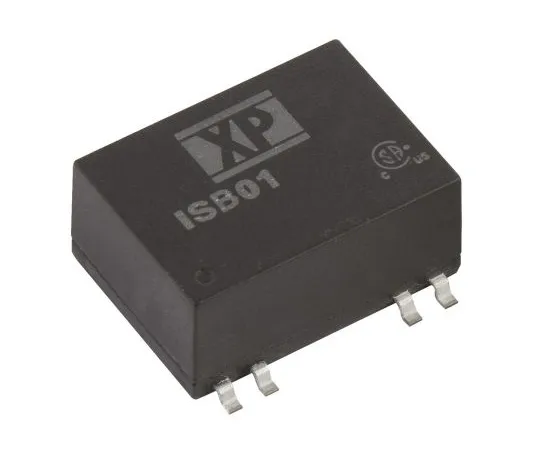

  • XP Power-ISB01 Series Insulated DC-DC Converter
  • The ISB01 series of XP Power is a reliable and stable single/dual output 1W insulated DC-DC converter.　It is packaged in a compact SMD package and features 1500 V dc breakdown voltage and high efficiency of up to 82%.　Compact, 2:1 input range, remote on/off setting, operating temperature -40 to +95 °C.
  • 1 W Insulated DC-DC Converter 1500 V dc Insulation Voltage 2:1 Input Range Stable Single/Dual Output Operating Temperature Range: -40 → +95 °C Remote On/Off Maximum Efficiency: 82% Small SMD Package with Tape Package and Reel Package Substrate Mounting

Spec

  • Quantity: 1 piece
  • Output Voltage: ± 12 V dc
  • Input voltage range: 18 to 36 V dc
  • Input voltage nominal: 24 V dc
  • insulation Voltage: 1.5 kV dc @ 60 s, 1.8 kV dc @ 1 s
  • Rating Power: 1W
  • Output current: ± 42 mA
  • Mounting type: Surface mounting
  • Number of outputs: 2
  • Efficiency: 82%
  • Package: SMD
  • Road regulation: ± 1%
  • Maximum temperature: + 95 degrees C
  • Series: ISB
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7314
