63-6853-05 Insulation DC-DC Converter Vout: 5 V dc 9 to 18 V dc 2 W 12 V dc IMM0212S05
Product Description
Product Model: 63-6853-05Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6853-05
Product Brand: XP Power
Features

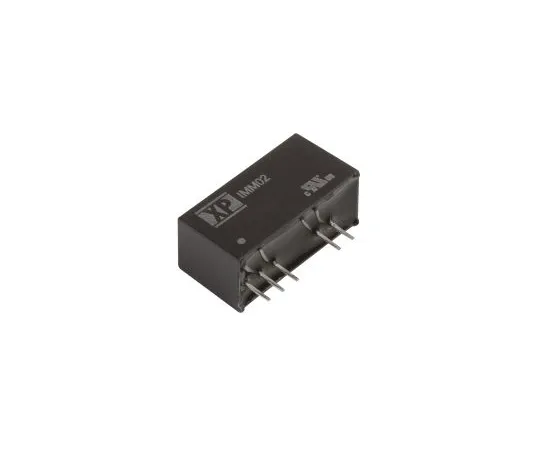

- XP Power-IMM02 Series Insulated DC-DC Converter
- XP Power's IMM02 series is a reliable single/dual output 2W insulated DC-DC converter. Comes in a compact SIP8 package with a 1500 V ac breakdown voltage and international medical standard certification. The operating temperature is -20 to +100 °C, and the environmental temperature is +60 °C for full load.
- 2 W Insulated DC-DC Converter 1500 V ac Insulation Voltage, 1 MOPP Single and Dual Output Environmental Temperature +60 °C Full Load Operating Temperature: -20 → +100 °C MTBF 1 million Hours Compact SIP8 Package Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1.5 kV ac
- Rating Power: 2W
- Output current: 400 mA
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: Yes
- Approved for railway ***: None
- Packages: SIP
- Load regulation: Maximum of 2%
- Maximum temperature: + 100 degrees C
- Series: IMM
- RoHS compliance status: Compliance
- Securities Code: 122 -7262
