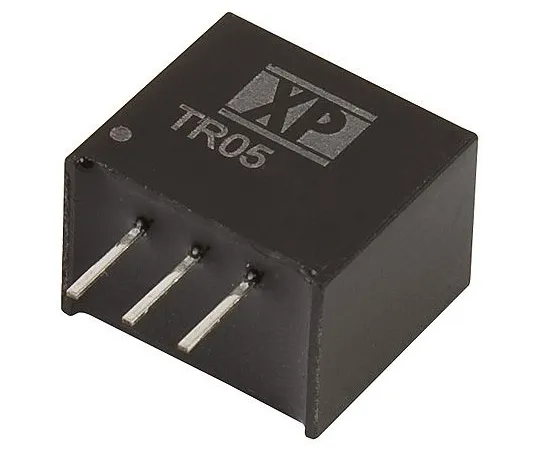

63-6852-68 DC-DC Switching Regulator rating: 6W TR05S12
Product Description
Product Model: 63-6852-68Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6852-68
Product Brand: XP Power
Features
- XP Power-TR Series Switching Regulator
- The TR series of XP Power is a reliable 3 T switching regulator with a 0.5 A, 3 pin SIP. Packaged in industry-standard packaging, it features continuous short-circuit protection and high efficiency of up to 94%. The input range is wide, and the operating temperature is -40 to +80 °C.
- 3 pin SIP 3T switching regulator industry standard package continuous short circuit protection wide input range Operating temperature range: -40 → +80 °C Maximum efficiency: 94% Pin-compatible with LM78MXX
Spec
- Quantity: 1 piece
- Input voltage: 14 to 28 V dc
- Output Voltage: 12 V dc
- Number of outputs: 1
- Output current: 500 mA
- Rating Power: 6W
- Mounting type: through hole
- Packages: SIP
- Minimum temperature: -40 degrees C
- Maximum temperature: + 85 degrees C
- Efficiency: 94%
- MTBF Average Failure interval: 4Mh
- Road regulation: ± 0.8%
- Line Regulation: ± 0.5%
- Ripple Noise: 60 mV Pk-Pk
- Series: TR
- RoHS compliance status: Compliance
- Securities Code: 122 -7223
