63-6852-57 DC-DC Switching Regulator rating: 4.5 W SR05S09
Product Description
Product Model: 63-6852-57Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6852-57
Product Brand: XP Power
Features

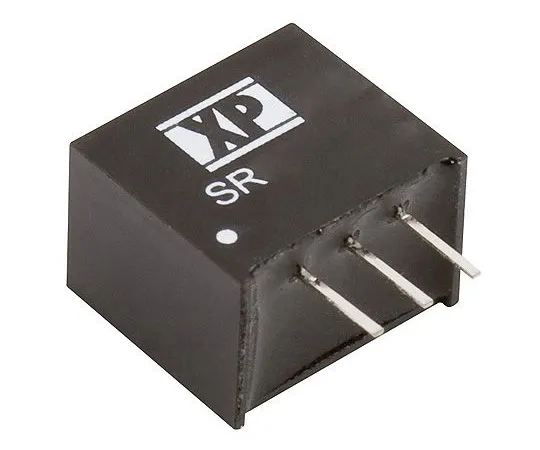

- XP Power-SR Series Switch Regulator
- The SR series of XP Power is a highly reliable 3-pin SIP 3T switching regulator with output of 0.5 A and 1 A. Packaged in industry-standard packaging, it features continuous short-circuit protection and high efficiency of up to 97%. Although compact, the input range is wide, and the operating temperature is -40 to +80°C.
- Industry Standard Package Continuous Short Circuit Protection Wide Input Range Operating Temperature Range: -40 → +80°C Maximum Efficiency: 97% Pin-Compatible with LM78MXX
Spec
- Quantity: 1 piece
- Input voltage: 11 to 34 V dc
- Output Voltage: 9V dc
- Number of outputs: 1
- Output current: 500 mA
- Rating Power: 4.5 W
- Mounting type: through hole
- Packages: SIP
- Minimum temperature: -40 degrees C
- Maximum temperature: + 85 degrees C
- Efficiency: 96%
- MTBF Average Failure interval: 4.5 Mh
- Road regulation: ± 0.6%
- Line Regulation: ± 0.5%
- Ripple Noise: 60 mV Pk-Pk
- Weight: 1.8 g
- RoHS compliance status: Compliance
- Securities Code: 122 -7212
