JGAUGE

63-6852-45　Insulation DC-DC Converter Vout: 5 V dc ± 15 V dc 9 to 36 V dc 30 W 24 V dc　JTL3024T0515
Electronic/Electrical Parts and Controll Equipments

63-6852-45　Insulation DC-DC Converter Vout: 5 V dc ± 15 V dc 9 to 36 V dc 30 W 24 V dc　JTL3024T0515

model: 63-6852-45
brand: XP Power
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-6852-45Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-6852-45
Product Brand: XP Power

Features

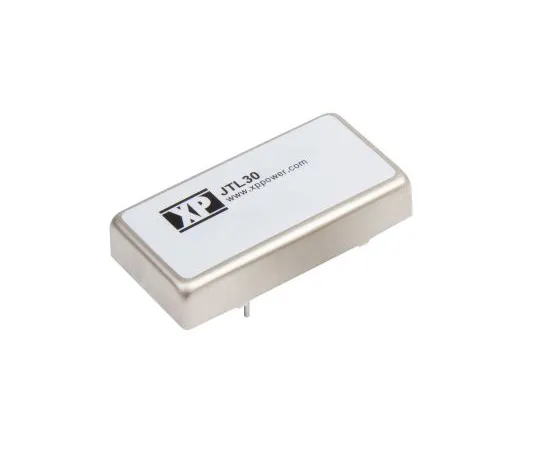

  • XP Power-JTL30 Series Insulated DC-DC Converter
  • XP Power's JTL30 series is a reliable 30 W single, dual and triple output DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 91%. It is compact, has a wide input voltage range of 4:1, high power density, and features a remote on/off setting function.
  • 30 W Insulated DC-DC Converter 1600 V dc Insulated High Power Density Single, Dual, Triple Output Wide Input Range with Remote On/Off Setting 4:1 Operating Temperature Range: -40 → +75°C Up to 91% High Efficiency Industry Standard Package Substrate Mounting

Spec

  • Quantity: 1 piece
  • Output Voltage: 5 V dc, ± 15 V dc
  • Input voltage range: 9 to 36 V dc
  • Input voltage nominal: 24 V dc
  • insulation Voltage: 1.6 kV dc
  • Rating Power: 30 W
  • Output Current: 4/± 0.33 A
  • Mounting type: through hole
  • Number of outputs: 3
  • Efficiency: 90%
  • Minimum temperature: -40 degrees C
  • Maximum temperature: + 75 degrees C
  • Width: 25.4 mm
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7200
