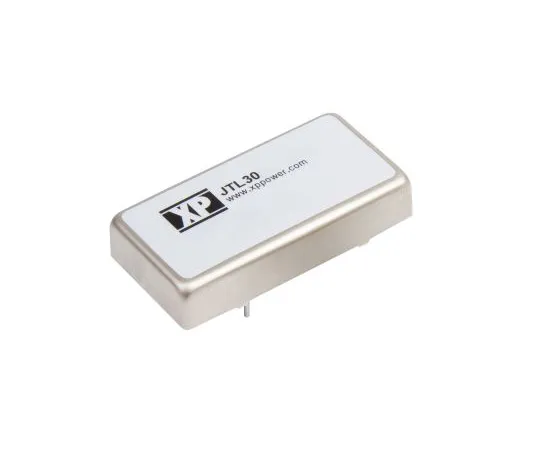

63-6852-40 Insulation DC-DC Converter Vout: 5 V dc 9 to 36 V dc 30 W 24 V dc JTL3024S05
Product Description
Product Model: 63-6852-40Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6852-40
Product Brand: XP Power
Features
- XP Power-JTL30 Series Insulated DC-DC Converter
- XP Power's JTL30 series is a reliable 30 W single, dual and triple output DC-DC converter. Packaged in industry-standard packaging, it features 1600 V dc breakdown voltage and high efficiency of up to 91%. It is compact, has a wide input voltage range of 4:1, high power density, and features a remote on/off setting function.
- 30 W Insulated DC-DC Converter 1600 V dc Insulated High Power Density Single, Dual, Triple Output Wide Input Range with Remote On/Off Setting 4:1 Operating Temperature Range: -40 → +75°C Up to 91% High Efficiency Industry Standard Package Substrate Mounting
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1600 V dc
- Rating Power: 30 W
- Output Current: 6 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 91%
- Road regulation: ± 0.5%
- Maximum temperature: + 75 degrees C
- Series: JTL
- RoHS compliance status: Compliance
- Securities Code: 122 -7195
