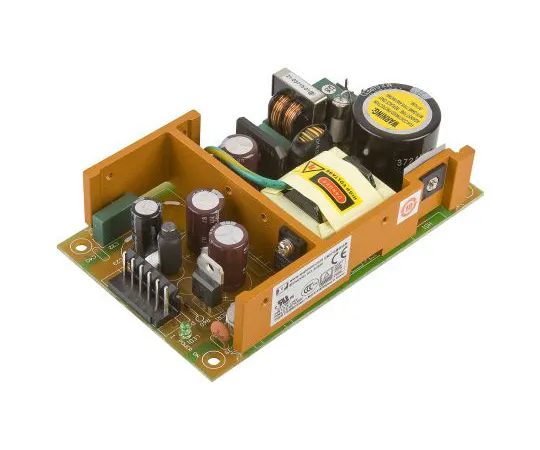

63-6852-33 AC/DC Converter 5/± 12 V dc 3 A 6 A 800 mA 63 W Open Frame SDS60UT05
Product Description
Product Model: 63-6852-33Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6852-33
Product Brand: XP Power
Features
- XP Power-SDS60 Series AC-DC Power Supplies
- The XP Power SDS60 Series is an excellent 60 W power supply with single, dual, triple, and quad outputs. This reliable and compact power supply has an output voltage of 3.3~38 V and is packaged in an industry-standard 3 x 5 inch package. There are open frame, U-channel and cover products, and the standard efficiency is 80%.
- 60 W, AC-DC Power Supply Single, Dual, Triple, Quad Output Operating Temperature: 0 → +70°C 1U Case Footprint: 5 x 3 inches Output Voltage: 3.3 → 48 V Efficiency: 80% (Standard) Open-frame, U-channel, covered
Spec
- Quantity: 1 piece
- Output Voltage: 5/± 12 V dc
- Output Current: 3 A, 6 A, 800 mA
- Rating Power: 63 W
- Number of outputs: 3
- Input Voltage: 120 to 370 V dc, 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 127 mm
- Width: 76.2 mm
- Depth: 30.5 mm
- Weight: 240 g
- Efficiency: 80%
- Maximum temperature: + 70 degrees C
- Minimum temperature: 0 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7188
