63-6852-15 AC/DC Converter 24 V dc 21 A 500 W with case Y GSP500PS24-EF
Electronic/Electrical Parts and Controll Equipments

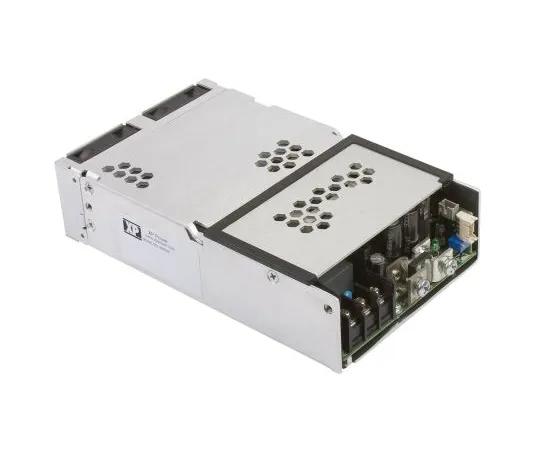

63-6852-15 AC/DC Converter 24 V dc 21 A 500 W with case Y GSP500PS24-EF

model: 63-6852-15
brand: XP Power

Product Description

Product Model: 63-6852-15Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6852-15
Product Brand: XP Power

Features

  • XP Power-GSP500 Series AC-DC Power
  • XP Power's GSP500 series offers excellent 500 W open frame power. All models are ITE certified and certified for medical ***. All models of this highly reliable compact power supply have a standard efficiency of 90% and standby power of less than 0.5 W. This power supply has a remote on/off function, a standby output power of 5 V with a current capacity of 2 A, and an operating temperature of -40 to +70 °C.
  • 500 W, AC-DC Power Universal Input: 85 → 264 V ac ITE Certified and Medical Certified Operating Temperature Range: -40 → +70 °C Standby Power:; 0.5 W efficiency: 90% remote on/off standby output: 5 V/2 A EN55011/22 Level B emission standard

Spec

  • Quantity: 1 piece
  • Output Voltage: 24 V dc
  • Output Current: 21 A
  • Rating Power: 500 W
  • Number of outputs: 1
  • Input Voltage: 80 to 264 V ac
  • Mounting Type: Chassis Mount
  • Package Type: With Cover
  • Length: 170.4 mm
  • Width: 101.6 mm
  • Depth: 41.9 mm
  • Weight: 900 g
  • Maximum temperature: + 70 degrees C
  • Medical standards certification: Yes
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7170
