Electronic/Electrical Parts and Controll Equipments
63-6852-11 AC/DC Converter 24 V dc 10.4 A 250 W Open Frame Y GCS250PS24
Product Description
Product Model: 63-6852-11Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6852-11
Product Brand: XP Power
Features

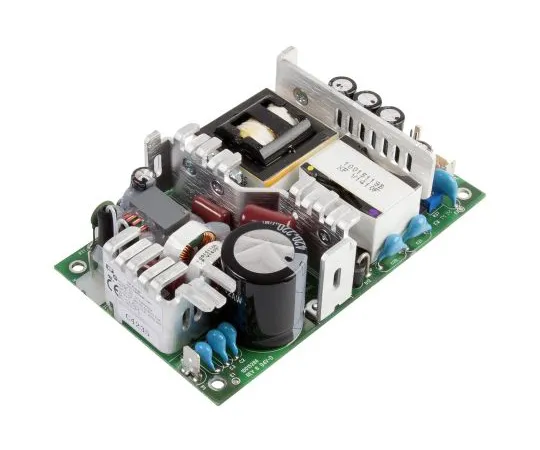

- XP Power-GCS250 Series AC-DC Power Supply
- XP Power's GCS250 Series is an excellent 250 W open frame power supply. All models are ITE certified and certified for medical ***. All models of this highly reliable compact power supply are up to 93% efficient and have standby power of less than 0.5 W. All power supplies are Class I or Class II, convectively cooled, and operate in the temperature range of -40 to +70 °C.
- 250 W, AC-DC Power Universal Input: 85 → 264 V ac ITE Certified and Medical Certified Operating Temperature Range: -40 → +70 °C Standby Power:; 0.5 W Efficiency: 93% Class I/Class II Structure-R Model Remote On/Off Option Package Dimensions: 3.0 x 5.0 x 1.42 in. Open frame to EN55011/22 Level B emission standard
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Output Current: 10.4 A
- Rating Power: 250 W
- Number of outputs: 1
- Input Voltage: 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 127 mm
- Width: 76.2 mm
- Depth: 36.3 mm
- Weight: 290 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7166
