63-6852-09 AC/DC Converter 12 V dc 18.8 A 250 W Open Frame Y GCS250PS12
Electronic/Electrical Parts and Controll Equipments

63-6852-09 AC/DC Converter 12 V dc 18.8 A 250 W Open Frame Y GCS250PS12

model: 63-6852-09
brand: XP Power

Product Description

Product Model: 63-6852-09Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6852-09
Product Brand: XP Power

Features

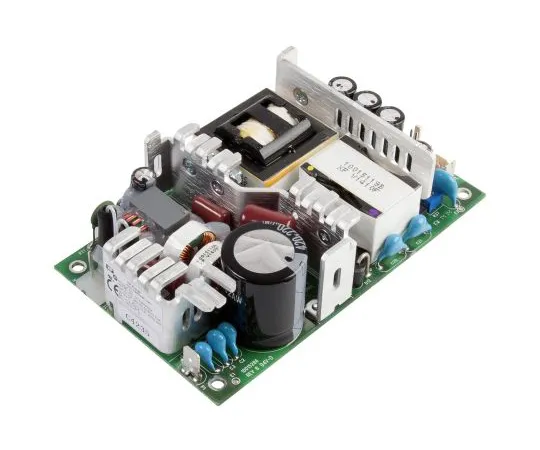

  • XP Power-GCS250 Series AC-DC Power Supply
  • XP Power's GCS250 Series is an excellent 250 W open frame power supply. All models are ITE certified and certified for medical ***. All models of this highly reliable compact power supply are up to 93% efficient and have standby power of less than 0.5 W. All power supplies are Class I or Class II, convectively cooled, and operate in the temperature range of -40 to +70 °C.
  • 250 W, AC-DC Power Universal Input: 85 → 264 V ac ITE Certified and Medical Certified Operating Temperature Range: -40 → +70 °C Standby Power:; 0.5 W Efficiency: 93% Class I/Class II Structure-R Model Remote On/Off Option Package Dimensions: 3.0 x 5.0 x 1.42 in. Open frame to EN55011/22 Level B emission standard

Spec

  • Quantity: 1 piece
  • Output Voltage: 12 V dc
  • Output Current: 18.8 A
  • Rating Power: 250 W
  • Number of outputs: 1
  • Input Voltage: 85 to 264 V ac
  • Mounting Type: Chassis Mount
  • Package Type: Open Frame
  • Length: 127 mm
  • Width: 76.2 mm
  • Depth: 36.3 mm
  • Weight: 290 g
  • Maximum temperature: + 70 degrees C
  • Medical standards certification: Yes
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7164
