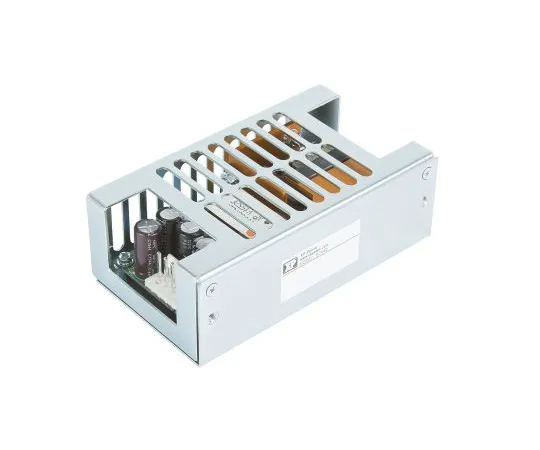

63-6851-35 AC/DC Converter 24 V dc 2.5 A 60 W with case Y ECM60US24-C
Product Description
Product Model: 63-6851-35Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6851-35
Product Brand: XP Power
Features
- XP Power-ECM60 Series AC-DC Power Supply
- The XP Power ECM60 Series offers a variety of open-frame 60 W AC-DC power supplies. All of these products are approved by the IT/Healthcare industry. All of these reliable, compact power supplies have a Class I or Class II structure. This series of products is convectively cooled and has an operating temperature range of 0 to +70 °C.
- Open-frame, 60 W power efficiency: 80 ~ 85% IT/Healthcare approved Class I/Class II structural DC input version available (DCM series) 3 year warranty
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Output Current: 2.5 A
- Rating Power: 60 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: With Cover
- Length: 101.6 mm
- Width: 50.8 mm
- Depth: 27 mm
- Weight: 150 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7086
