63-6851-23 AC/DC Converter 5/± 12 V dc 2 A 6 A 500 mA 40 W Open Frame Y ECM40UT31
Product Description
Product Model: 63-6851-23Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6851-23
Product Brand: XP Power
Features

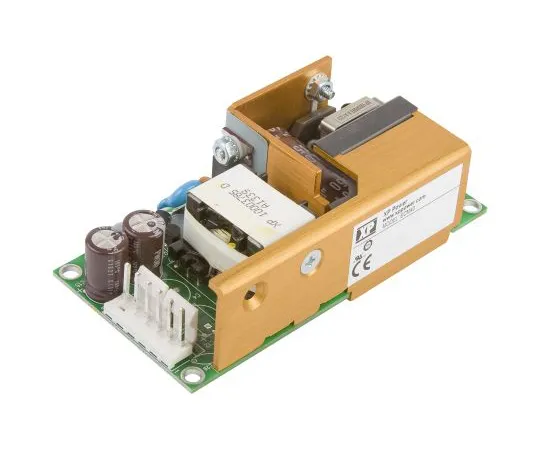

- XP Power-ECM40 Series AC-DC Power Supply
- The XP Power ECM40 Series offers outstanding open-frame, 40 W, AC-DC power supply. All of these products are certified in IT and medical standards. All of these reliable, compact power supplies have a Class I or Class II structure. This series is convectively cooled and has an operating temperature of 0 to +70 °C.
- 40 W, open frame, AC-DC power efficiency: 80 ~ 85% certified in IT and medical standardsClass I and Class II structureDC input type available (DCM series) 3 year warranty
Spec
- Quantity: 1 piece
- Output Voltage: 5/± 12 V dc
- Output Current: 2 A, 6 A, 500 mA
- Rating Power: 40 W
- Number of outputs: 3
- Input Voltage: 120 to 370 V dc, 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 101.6 mm
- Width: 50.8 mm
- Depth: 27 mm
- Weight: 150 g
- Maximum temperature: + 70 degrees C
- Minimum temperature: 0 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7073
