63-6850-44 Insulation DC-DC Converter Vout: ± 12 V dc 4.5 to 18 V dc 3 W 12 V dc IP1212S
Product Description
Product Model: 63-6850-44Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6850-44
Product Brand: XP Power
Features

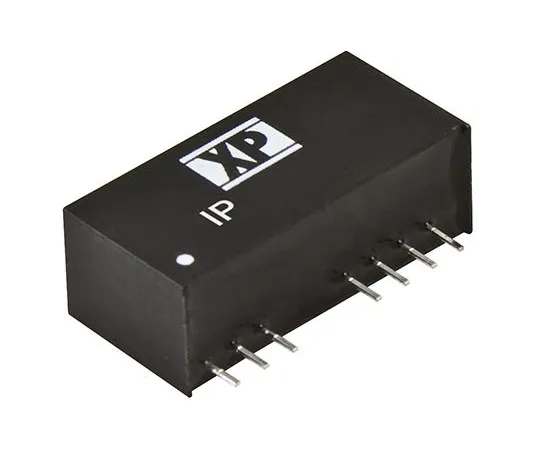

- XP Power-IP Series Insulated DC-DC Converter
- The XP Power IP series is a reliable and stable single/dual output 3W insulated DC-DC converter. Offers a wide 4:1 input range, 1600 V dc breakdown voltage, and comes in an industry-standard SIP package. These compact DC-DC converters also feature high efficiency of up to 82%, remote on/off settings, and continuous short-circuit protection.
- 3 W Insulated DC-DC Converter 1500 V dc Insulation Voltage Stable Single/Dual Output Operating Temperature Range: -40 → +85 °C Industry Standard SIP Packaging Maximum Efficiency: 82% Remote On/Off Setting Continuous Short Circuit Protection
Spec
- Quantity: 1 piece
- Output Voltage: ± 12 V dc
- Input voltage range: 4.5 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1.6 kV dc
- Rating Power: 3W
- Output current: ± 125 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 80%
- Packages: SIP
- Road regulation: ± 1%
- Maximum temperature: + 85 degrees C
- Width: 9.2 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6992
