63-6850-22 Insulation DC-DC Converter Vout: 15 V dc 21.6 to 26.4 V dc 2 W 24 V dc IL2415S
Product Description
Product Model: 63-6850-22Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6850-22
Product Brand: XP Power
Features
- XP Power-IL Series Insulated DC-DC Converter
- The IL series of XP Power is a reliable single-output 2W insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP packages. Each of these compact DC-DC converters has a wide operating temperature of -40 to +85 °C and a maximum efficiency of 84%.
- 2 W Insulated DC-DC Converter with Insulation Voltage 1000 V dc, 3000 V dc Option Single Output Operating Temperature Range: -40 → +85 °C Industry Standard SIP Packaging Maximum Efficiency: 84%
Spec
- Quantity: 1 piece
- Output Voltage: 15 V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1 kV dc
- Rating Power: 2W
- Output current: 132 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 84%
- Packages: SIP
- Minimum temperature: -40 degrees C
- Maximum temperature: + 85 degrees C
- Series: IL
- RoHS compliance status: Compliance
- Securities Code: 122 -6970
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

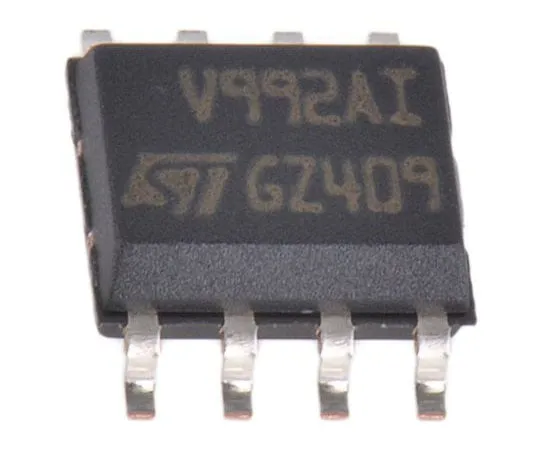

63-7994-59 TSV992AIDT STMicroelectronics, Op Amp, RRIO, 20MHz, 2.5 → 5.5 V, 8-Pin SOIC TSV992AIDT
model: 63-7994-59
brand: STMicroelectronics
Electronic/Electrical Parts and Controll Equipments
63-6992-20 Burkert Proportional Solenoid Valve 239081, 2 port , NC, 24 V dc, 1/4in 239081
model: 63-6992-20
brand: Burkert
Electronic/Electrical Parts and Controll Equipments

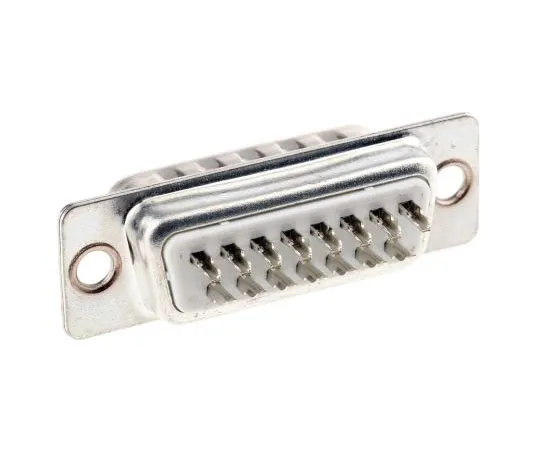

63-7959-37 Wurth Elektronik 618 Series Cable Mount, 15 Pin D-sub Connector Plug, Shell Size A 61801524823
