63-6849-93 Insulation DC-DC Converter Vout: ± 24 V dc 21.6 to 26.4 V dc 2 W 24 V dc IH2424SH
Product Description
Product Model: 63-6849-93Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6849-93
Product Brand: XP Power
Features

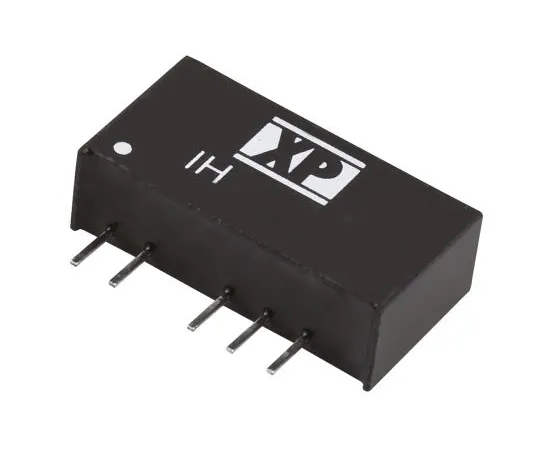

- XP Power-IH Series Insulated DC-DC Converter
- The IH series of XP Power is a reliable dual-output 2W insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP or DIP packages. Each of these compact DC-DC converters has a wide operating temperature of -40 to +85 °C and a maximum efficiency of 82%.
- 2 W Insulation DC-DC Converter 1000 V dc Insulation Voltage Dual Output Operating Temperature Range: -40 → +85 °C Industry Standard SIP/DIP Packaging Maximum Efficiency: 82%
Spec
- Quantity: 1 piece
- Output Voltage: ± 24 V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 3 kV dc
- Rating Power: 2W
- Output current: ± 42 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 82%
- Packages: SIP
- Road regulation: ± 10%
- Maximum temperature: + 85 degrees C
- Series: IH
- RoHS compliance status: Compliance
- Securities Code: 122 -6940
