Electronic/Electrical Parts and Controll Equipments

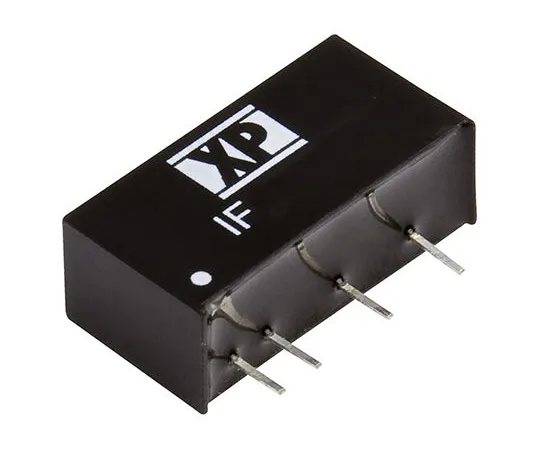

63-6849-67 Insulation DC-DC Converter Vout: 5 V dc 10.8 to 13.2 V dc 1 W 12 V dc IF1205S
Product Description
Product Model: 63-6849-67Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6849-67
Product Brand: XP Power
Features
- XP Power-IF Series Insulated DC-DC Converter
- The IF series of XP Power is a reliable, adjustable, single-output, 1-W insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP or DIP packages. These compact DC-DC converters also have low ripple/noise and a wide operating temperature range of -40 to +85 °C.
- 1 W Insulated DC-DC Converter 1000 V dc, 3000 V dc Optional Adjustable Single Output Operating Temperature Range: -40 → +85 °C Industry Standard SIP/DIP Packaging Maximum Efficiency: 68% Low Ripple, Low Noise
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 10.8 to 13.2 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1 kV dc
- Rating Power: 1W
- Output current: 200 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 63%
- Packages: SIP
- Road regulation: ± 0.5%
- Maximum temperature: + 85 degrees C
- Length: 19.5 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6912
