63-6849-54 Insulation DC-DC Converter Vout: 5 V dc 21.6 to 26.4 V dc 1 W 24 V dc IE2405D
Product Description
Product Model: 63-6849-54Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6849-54
Product Brand: XP Power
Features
- XP Power-IEU Series DC-DC Converters
- The IEU series of XP Power is a reliable single/dual output insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP or DIP packages. All of these compact DC-DC converters operate at a higher temperature and are available in smaller package sizes.
- 1 W insulated DC-DC converter with 1000 V dc breakdown voltage, 3000 V dc option Single output Operating temperature range: -40 → +85 °C Industry standard SIP/DIP Packaging Maximum efficiency: 80% Small package available
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1000 V dc
- Rating Power: 1W
- Output current: 200 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 75%
- Package: DIP
- Load regulation: Maximum of 10%
- Maximum temperature: + 85 degrees C
- Width: 10.14 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6898
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7325-33 Cooper Bussmann, 750mA Glass Cartridge F***, 6.3 x 32mm, Speed T TDC11-750MA
model: 63-7325-33
brand: Cooper Bussmann
Electronic/Electrical Parts and Controll Equipments
63-7030-78 2.2 V Red LED 2012 (0805) SMD, ROHM SML-H12U8TT86 SML-H12U8TT86
model: 63-7030-78
brand: ROHM
Electronic/Electrical Parts and Controll Equipments

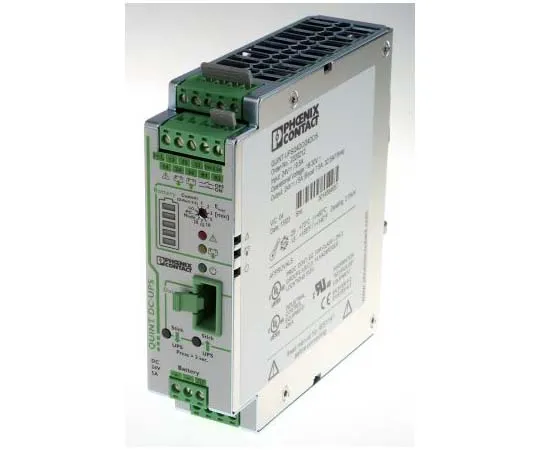

63-7800-38 Phoenix Contact, QUINT-UPS/ 24DC/ 24DC/ 5 PSU, 24V dc Output Voltage, 5A output current 2320212
