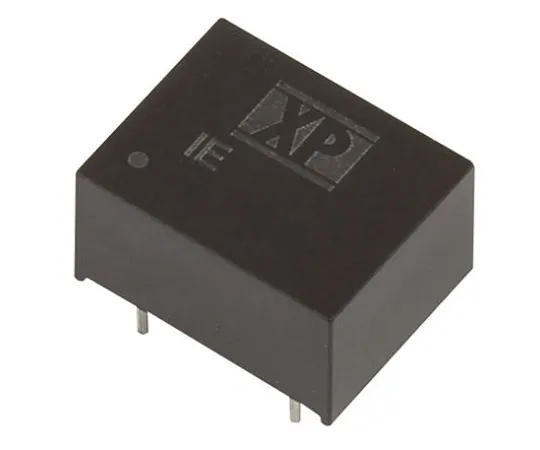

63-6849-41 Insulation DC-DC Converter Vout: 5 V dc 10.8 to 13.2 V dc 1 W 12 V dc IE1205D
Electronic/Electrical Parts and Controll Equipments

63-6849-41 Insulation DC-DC Converter Vout: 5 V dc 10.8 to 13.2 V dc 1 W 12 V dc IE1205D

model: 63-6849-41
brand: XP Power

Product Description

Product Model: 63-6849-41Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6849-41
Product Brand: XP Power

Features

  • XP Power-IEU Series DC-DC Converters
  • The IEU series of XP Power is a reliable single/dual output insulated DC-DC converter. The breakdown voltage is 1000 V dc and is provided in industry-standard SIP or DIP packages. All of these compact DC-DC converters operate at a higher temperature and are available in smaller package sizes.
  • 1 W insulated DC-DC converter with 1000 V dc breakdown voltage, 3000 V dc option Single output Operating temperature range: -40 → +85 °C Industry standard SIP/DIP Packaging Maximum efficiency: 80% Small package available

Spec

  • Quantity: 1 piece
  • Output Voltage: 5V dc
  • Input voltage range: 10.8 to 13.2 V dc
  • Input voltage nominal: 12 V dc
  • insulation Voltage: 1000 V dc
  • Rating Power: 1W
  • Output current: 200 mA
  • Mounting type: through hole
  • Number of outputs: 1
  • Efficiency: 75%
  • Package: DIP
  • Load regulation: Maximum of 10%
  • Maximum temperature: + 85 degrees C
  • Length: 12.7 mm
  • RoHS compliance status: Compliance
  • Securities Code: 122 -6884
