Features

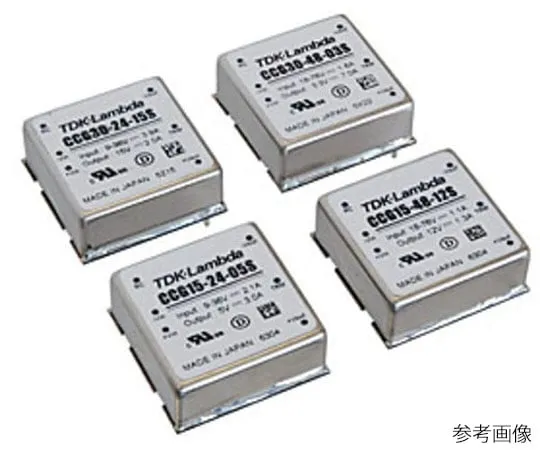

• An onboard DC-DC converter with 15 W output in a compact shape of 1 x 1 inch. The mounting area is about 50% smaller than the company's previous products. It has a six-sided shield structure considering noise, and the bottom surface as well as the metal case is shielded by the substrate copper foil. The input voltage range is 9 V to 36 V.
• Main specifications
• Output power 15 W
• Input voltage range DC9~36 V
• Output voltage DC5V
• Output current 3 A
• Efficiency (typ) 87%
• Operating temperature range -40 - +85°C
• External dimensions (mm) 25.4 x 9.9 x 25.4 mm
