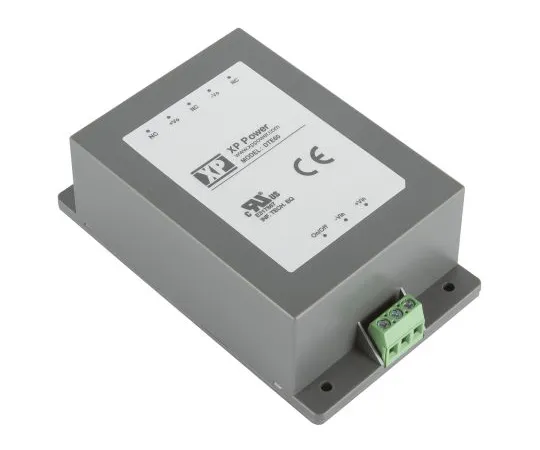

63-6848-29 Insulation DC-DC Converter Vout: 5.1 V dc 9 to 36 V dc 60 W 24 V dc DTE6024S5V1
Product Description
Product Model: 63-6848-29Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6848-29
Product Brand: XP Power
Features
- XP Power-DTE60 Series DC-DC Converters
- The XP Power DTE60 series offers a reliable, fully sealed 60 W DC-DC converter. This series is available in chassis mount or DIN rail mount type. Each product has a wide input range of 4:1 and an operating temperature of -40 to +85 °C.
- 60 W fully sealed for chassis installation or DIN rail installation Operating temperature range: -40 → +85 °C Wide input range 4:1 High efficiency: up to 92%
Spec
- Quantity: 1 piece
- Output Voltage: 5.1 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 2.5 kV dc
- Rating Power: 60 W
- Output Current: 12 A
- Mounting Type: Chassis Mount
- Number of outputs: 1
- Efficiency: 90%
- Package: Sealed
- Road regulation: ± 1%
- Maximum temperature: + 85 degrees C
- Length: 112 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6635
