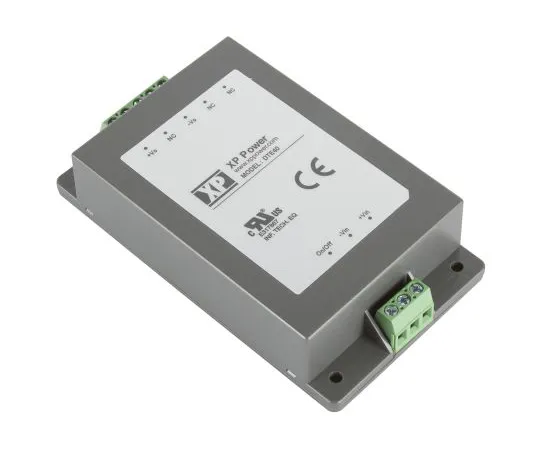

63-6848-21 Insulation DC-DC Converter Vout: 48 V dc 9 to 36 V dc 40 W 24 V dc DTE4024S48
Product Description
Product Model: 63-6848-21Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6848-21
Product Brand: XP Power
Features
- XP Power-DTE40 Series DC-DC Converter
- The XP Power DTE40 series is a reliable 40 W, fully sealed DC-DC converter. This series features chassis mounting and DIN rail mounting options, a wide 4:1 input range, and an operating temperature range of -40 to +85 °C.
- 40 W fully sealed chassis mounting and DIN rail mounting options Operating temperature range: -40 → +85 °C 4:1 wide input range
Spec
- Quantity: 1 piece
- Output Voltage: 48 V dc
- Input voltage range: 9 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 2.5 kV dc
- Rating Power: 40 W
- Output current: 835 mA
- Mounting Type: Chassis Mount
- Number of outputs: 1
- Efficiency: 89%
- Package: Sealed
- Load regulation: 1%
- Maximum temperature: + 85 degrees C
- Series: DTE 40
- RoHS compliance status: Compliance
- Securities Code: 122 -6625
