Electronic/Electrical Parts and Controll Equipments

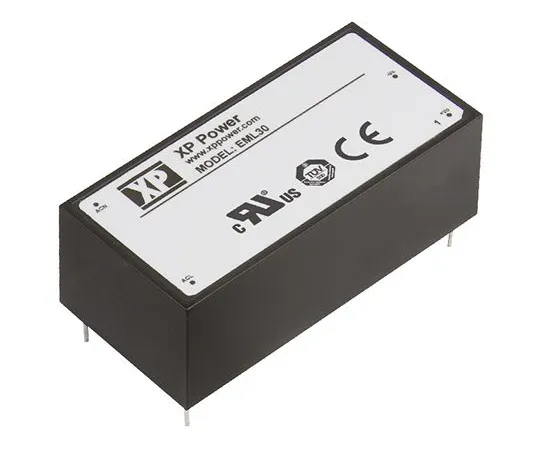

63-6848-02 AC/DC Converter 9 V dc 3.33 A 30 W Sealed Y EML30US09-E
Product Description
Product Model: 63-6848-02Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6848-02
Product Brand: XP Power
Features
- XP EMCO-EML30 Series AC-DC Power Supply
- XP Power's EML30 series is a highly reliable, open-frame and sealed AC-DC single-output power supply. It is designed primarily for medical applications and complies with worldwide medical safety standards according to Class B conductive and radioactive noise. This compact Class II design offers a single output range of 3.3~48 V for peak loads of 130% and 30 seconds.
- 30 W 3.3 to 48 V single output mechanical option: 130% compliant with global medical safety standards including substrate mounting, open frame and chassis mounting, Class II design for 30 second peak load
Spec
- Quantity: 1 piece
- Output Voltage: 9V dc
- Output Current: 3.33 A
- Rating Power: 30 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Sealed
- Length: 78.7 mm
- Width: 38.1 mm
- Depth: 27.9 mm
- Weight: 160 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -6602
