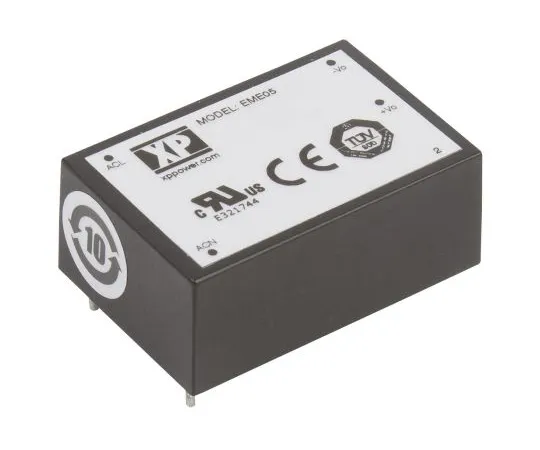

63-6847-89 AC/DC Converter 48 V dc 135 mA 5 W with case Y EME05US48
Product Description
Product Model: 63-6847-89Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6847-89
Product Brand: XP Power
Features
- XP Power-EME05 Series AC-DC Power Supply
- XP Power's EME05 series is a highly reliable, open-frame and sealed AC-DC single-output power supply. It is designed primarily for medical applications and complies with worldwide medical safety standards according to Class B conductive and radioactive noise. This compact Class II design offers a single output range of 3.3~48 V for peak loads of 130% and 30 seconds.
- Features and benefits: 2 structural options: 5 W 3.3 → 48 V single output open frame and sealed substrate mounting 130% meets global medical safety standards; Class II design for 30 second peak load
Spec
- Quantity: 1 piece
- Output Voltage: 48 V dc
- Output current: 135 mA
- Rating Power: 5W
- Number of outputs: 1
- Input Voltage: 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: With Cover
- Length: 38.1 mm
- Width: 25.4 mm
- Depth: 15.2 mm
- Weight: 24 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -6581
