Features

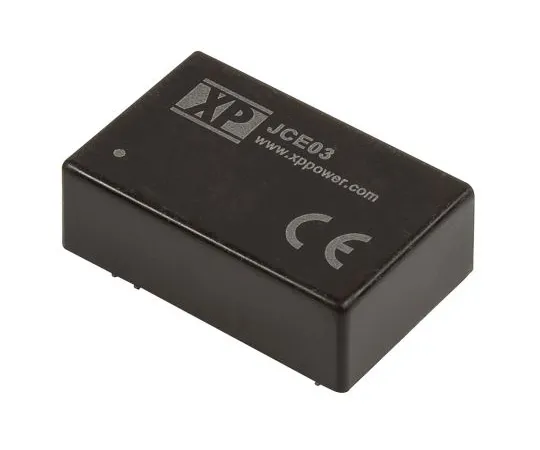

• XP Power-JCE03 Series Insulated DC-DC Converters
• The XP Power JCE03 series is a reliable, fully stable, single/dual output 3W insulated DC-DC converter.　This series has a breakdown voltage of 1500 V dc (3000 V dc option available) and is packaged in the industry standard DIP 24 package.　These compact DC-DC converters offer a 2:1 input range, no minimum load requirements, and a wide operating temperature range of 40 to +90 °C, making them an ideal option for commercial and industrial hosts.
• 3 W, Insulated DC-DC Converter Insulated Voltage 1500 V dc with 3000 V dc Option Stable Single/Dual Output Industry Standard DIP24 Package No Minimum Load Condition Wide Operating Temperature Range: -40 → +90 °C
