63-6845-60 Insulation DC-DC Converter Vout: 5 V dc 18 to 36 V dc 3 W 24 V dc JCE0324S05
Electronic/Electrical Parts and Controll Equipments

63-6845-60 Insulation DC-DC Converter Vout: 5 V dc 18 to 36 V dc 3 W 24 V dc JCE0324S05

model: 63-6845-60
brand: XP Power

Product Description

Product Model: 63-6845-60Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6845-60
Product Brand: XP Power

Features

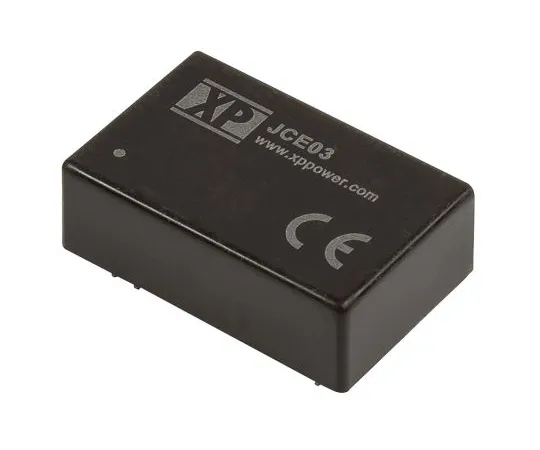

  • XP Power-JCE03 Series Insulated DC-DC Converters
  • The XP Power JCE03 series is a reliable, fully stable, single/dual output 3W insulated DC-DC converter. This series has a breakdown voltage of 1500 V dc (3000 V dc option available) and is packaged in the industry standard DIP 24 package. These compact DC-DC converters offer a 2:1 input range, no minimum load requirements, and a wide operating temperature range of 40 to +90 °C, making them an ideal option for commercial and industrial hosts.
  • 3 W, Insulated DC-DC Converter Insulated Voltage 1500 V dc with 3000 V dc Option Stable Single/Dual Output Industry Standard DIP24 Package No Minimum Load Condition Wide Operating Temperature Range: -40 → +90 °C

Spec

  • Quantity: 1 piece
  • Output Voltage: 5V dc
  • Input voltage range: 18 to 36 V dc
  • Input voltage nominal: 24 V dc
  • insulation Voltage: 1.5 kV dc
  • Rating Power: 3W
  • Output current: 600 mA
  • Mounting type: through hole
  • Number of outputs: 1
  • Efficiency: 77%
  • Package: DIP 24
  • Road regulation: ± 1.2%
  • Maximum temperature: + 100 degrees C
  • Length: 31.75 mm
  • RoHS compliance status: Compliance
  • Securities Code: 122 -6186
