63-6845-17 Insulation DC-DC Converter Vout: 24 V dc 21.6 to 26.4 V dc 1 W 24 V dc IV2424SA
Product Description
Product Model: 63-6845-17Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6845-17
Product Brand: XP Power
Features
- XP Power-IV Series Insulated DC-DC Converters
- The IV series from XP Power is a reliable single/dual output, 1W insulated DC-DC converter. This series has a breakdown voltage of 3000 V dc (4000 V dc and 6000 V dc options available) and is packaged in industry-standard SIP and DIP packages. These compact DC-DC converters offer a wide operating temperature range of 40 to +85 °C, making them an ideal option for commercial and industrial hosts.
- 1 W, Insulated DC-DC Converter with optional breakdown voltage 3000 V dc, 4000 V dc, 6000 V dc Available for both single output and dual output DIP/SIP packages Wide operating temperature range: -40 → +85 °C
Spec
- Quantity: 1 piece
- Output Voltage: 24 V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 3 kV dc
- Rating Power: 1W
- Output current: 42 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 78%
- Packages: SIP
- Road regulation: ± 10%
- Maximum temperature: + 85 degrees C
- Length: 19.5 mm
- RoHS compliance status: Compliance
- Securities Code: 122 -6143
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7399-38 FAG 30mm Bore Spherical Bearing, 57000N Radial Load Rating 22206-E1-XL
model: 63-7399-38
brand: FAG
Electronic/Electrical Parts and Controll Equipments

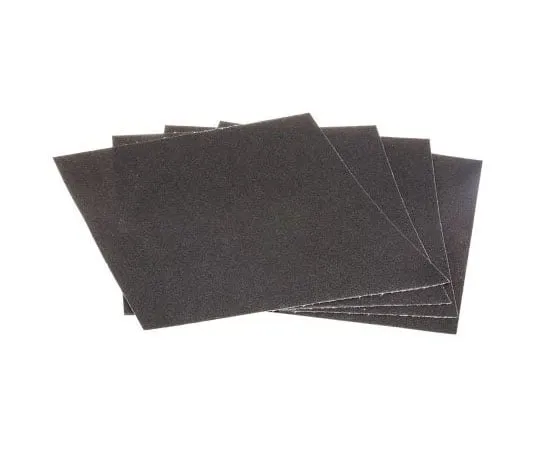

63-7962-30 Flexovit 80 Aluminium Oxide Emery Cloth, 280 x 230mm 63642558250
