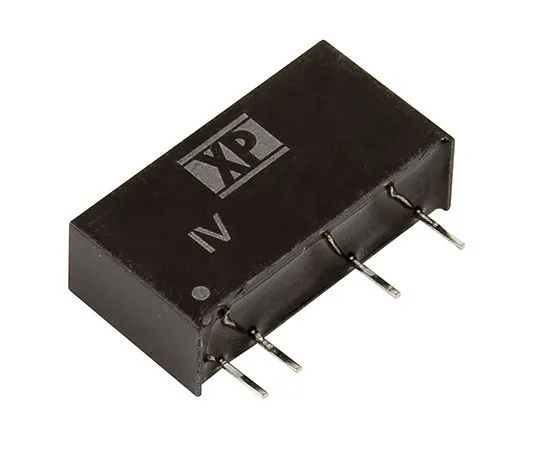

63-6845-15 Insulation DC-DC Converter Vout: 15 V dc 21.6 to 26.4 V dc 1 W 24 V dc IV2415SA
Product Description
Product Model: 63-6845-15Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6845-15
Product Brand: XP Power
Features
- XP Power-IV Series Insulated DC-DC Converters
- The IV series from XP Power is a reliable single/dual output, 1W insulated DC-DC converter. This series has a breakdown voltage of 3000 V dc (4000 V dc and 6000 V dc options available) and is packaged in industry-standard SIP and DIP packages. These compact DC-DC converters offer a wide operating temperature range of 40 to +85 °C, making them an ideal option for commercial and industrial hosts.
- 1 W, Insulated DC-DC Converter with optional breakdown voltage 3000 V dc, 4000 V dc, 6000 V dc Available for both single output and dual output DIP/SIP packages Wide operating temperature range: -40 → +85 °C
Spec
- Quantity: 1 piece
- Output Voltage: 15 V dc
- Input voltage range: 21.6 to 26.4 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 3 kV dc
- Rating Power: 1W
- Output current: 66 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 78%
- Packages: SIP
- Road regulation: ± 10%
- Maximum temperature: + 85 degrees C
- Series: IV
- RoHS compliance status: Compliance
- Securities Code: 122 -6141
