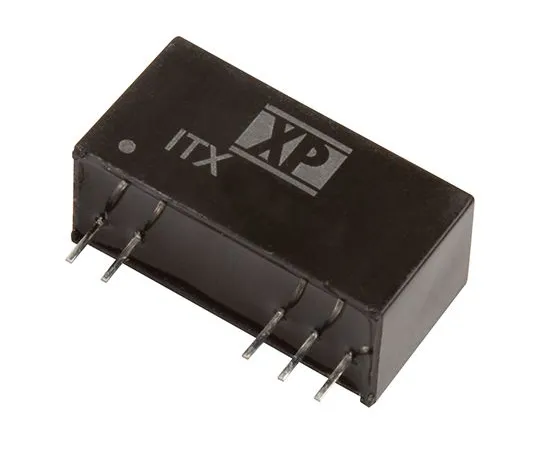

63-6844-77 Insulation DC-DC Converter Vout: 24 V dc 4.5 to 9 V dc 6 W 5 V dc ITX0524SA
Electronic/Electrical Parts and Controll Equipments

63-6844-77 Insulation DC-DC Converter Vout: 24 V dc 4.5 to 9 V dc 6 W 5 V dc ITX0524SA

model: 63-6844-77
brand: XP Power

Product Description

Product Model: 63-6844-77Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6844-77
Product Brand: XP Power

Features

  • XP Power-ITX Series Insulated DC-DC Converters
  • The XP Power JITX series is a reliable single/dual output, 6W insulated DC-DC converter. This series has a breakdown voltage of 1500 V dc (3000 V dc option available) and is packaged in an industry-standard SIP-8 package. These compact DC-DC converters offer a 2:1 input range, up to 86% efficiency, and a wide operating temperature range of 40 → +90 °C, making them an ideal option for commercial and industrial hosts.
  • 6 W Insulation DC-DC Converter 2:1 Input Range 1500 V dc Insulation Voltage, 3000 V dc Optional Single Output and Dual Output SIP-8 Plastic Case Wide Operating Temperature Range: -40 → +90 °C Remote Control Options

Spec

  • Quantity: 1 piece
  • Output Voltage: 24 V dc
  • Input voltage range: 4.5 to 9 V dc
  • Input voltage nominal: 5V dc
  • insulation Voltage: 1500 V dc
  • Rating Power: 6W
  • Output current: 250 mA
  • Mounting type: through hole
  • Number of outputs: 1
  • Efficiency: 84%
  • Package: SIP8
  • Road regulation: ± 1%
  • Maximum temperature: + 90 degrees C
  • Series: ITX
  • RoHS compliance status: Compliance
  • Securities Code: 122 -6104
