Electronic/Electrical Parts and Controll Equipments

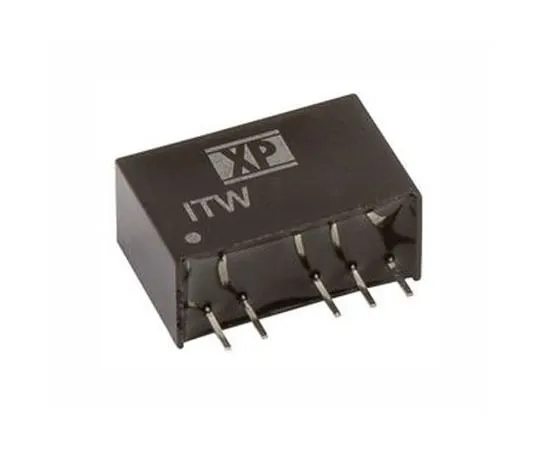

63-6844-60 Insulation DC-DC Converter Vout: ± 15 V dc 18 to 36 V dc 1 W 24 V dc ITW2415S
Product Description
Product Model: 63-6844-60Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6844-60
Product Brand: XP Power
Features
- XP Power-ITW Series Insulated DC-DC Converter
- The XP Power ITW series DC-DC converter is a rugged and reliable product that can be ***d in a variety of applications. The ITW series is a single or dual output converter.
- Features and benefits: Single output and dual output. No minimum load condition, fully adjustable output. SMD package. Industry standard pin alignment. Wide operating temperature range: -40 °C → +105°C.
Spec
- Quantity: 1 piece
- Output Voltage: ± 15 V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 1W
- Output current: ± 33 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 79%
- Load regulation: ± 1 (5 to 100% Load)%, ± 2 (0 to 100% Load)%
- Maximum temperature: + 105 degrees C
- Series: ITW
- RoHS compliance status: Compliance
- Securities Code: 122 -6087
