63-6844-57 Insulation DC-DC Converter Vout: 5 V dc 18 to 36 V dc 1 W 24 V dc ITW2405SA
Product Description
Product Model: 63-6844-57Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6844-57
Product Brand: XP Power
Features

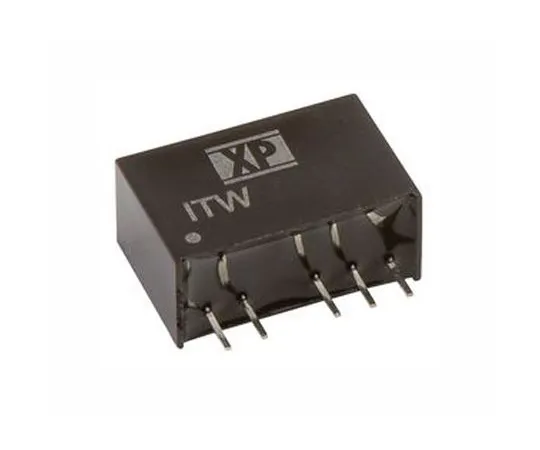

- XP Power-ITW Series Insulated DC-DC Converter
- The XP Power ITW series DC-DC converter is a rugged and reliable product that can be ***d in a variety of applications. The ITW series is a single or dual output converter.
- Features and benefits: Single output and dual output. No minimum load condition, fully adjustable output. SMD package. Industry standard pin alignment. Wide operating temperature range: -40 °C → +105°C.
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1500 V dc
- Rating Power: 1W
- Output current: 200 mA
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 78%
- Road regulation: ± 1%
- Maximum temperature: + 105 degrees C
- Series: ITW
- RoHS compliance status: Compliance
- Securities Code: 122 -6084
