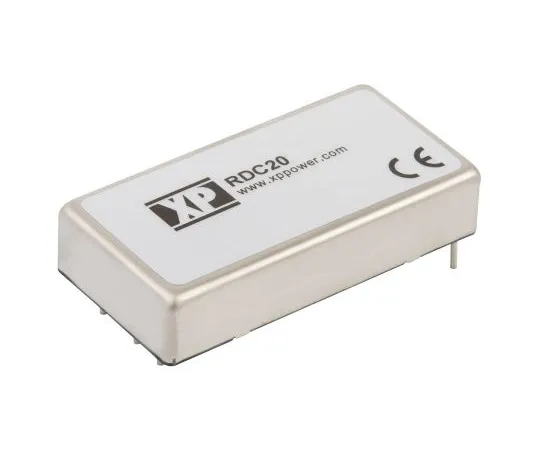

63-6834-70 Insulation DC-DC Converter Vout: 12 V dc 55 to 176 V dc 20 W 110 V dc RDC20110S12
Product Description
Product Model: 63-6834-70Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6834-70
Product Brand: XP Power
Features
- XP Power-RDC20 Series DC-DC Converter
- XP Power's RDC20 series is a highly reliable 20 W single/dual output DC-DC converter. This product is designed with 72 V dc/110 V dc input for rail applications and features 1500 V ac basic insulation.
- 20 W 1500 V ac Basic Insulated Single Output and Dual Output 72 V dc and 110 V dc (for Railway Applications) High Power Density 3-Year Warranty
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 55 to 176 V dc
- Input voltage nominal: 110 V dc
- insulation Voltage: 1.5 kV ac
- Rating Power: 20 W
- Output Current: 1.65 A
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: None
- Approved for rail ***: Yes
- Road regulation: ± 0.5%
- Maximum temperature: + 85 degrees C
- Series: RDC
- RoHS compliance status: Compliance
- Securities Code: 122 -4546
