Spec

• Package: -

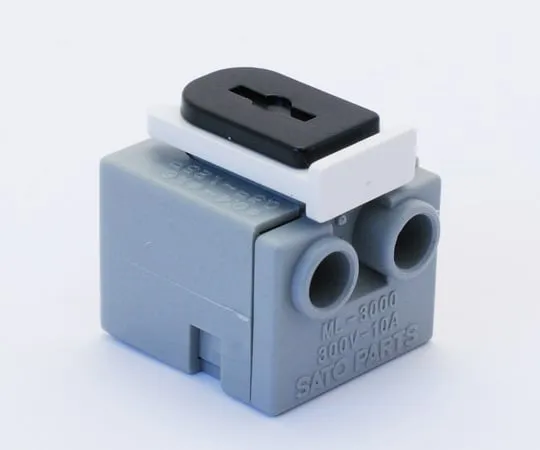

• Contents: Relay terminal
• Number of poles: 1 pole
• Pitch between terminals: 7 mm
• "Screwless terminal blocks" are available as terminal blocks that do not require connecting screws.
• The wire can be peeled and connected to the terminal block with one touch, improving the workability of the connection. To connect or disconnect a wire, simply insert or pull the wire into the insertion hole while pressing the button, and no special tool is needed.
• They are available for panel mounting, board mounting, relaying, etc., and some hole diameters can be mounted on universal boards.
• Figure 1 shows the connection procedure. You can operate the buttons with your fingers, but using a flat-blade screwdriver gives you a better working experience.
• Also, as shown in Fig. 2, a strip gauge is provided beside the terminal block as a guide for the length of the wire to be peeled.
