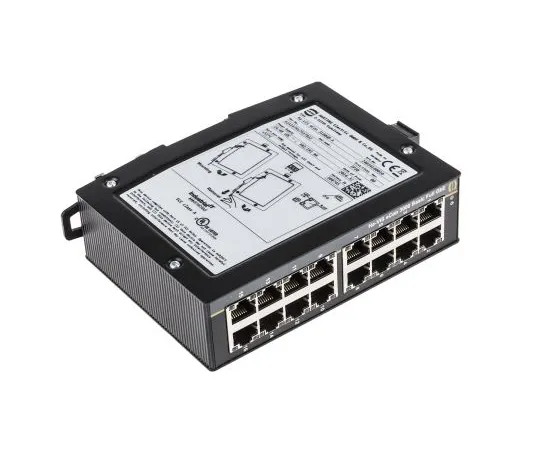

63-6832-80 Ethernet Switch 16 DIN Rail 10 Mbit/s 100 Mbit/s 1000 Mbit/s 24034160010
Product Description
Product Model: 63-6832-80Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-6832-80
Product Brand: HARTING
Features
- Ha-VIS eCon 3000 Full Ethernet Basic
- The Ha-VIS eCon 3000 full-gigabit unmanaged Ethernet switch family features up to 7 Gigabit Ethernet ports. This switch enables fast, cost-effective scaling and reconfiguration of network infrastructure with high bandwidth requirements. Thinly designed switches increase packing density of DIN rails. Various switches are available with different combinations of RJ45 and fiber optic cables. Simple plug and play connection is possible by automatic detection of transmission speed and wiring of twisted pair data cable.
- Features and benefits: Full Gigabit Ethernet non-blocking switch architecture 2-7 Ethernet ports (RJ45/fiber-optic ports) IEEE802.3 compliant Commercial temperature range: 0 to +55 °C Industrial temperature range: -40 to +70 °C Jumbo frame (10 kB) wide power supply: 24/48 V dc surge protection and reverse polarity protectionOptimized DIN rail bracket with energy-efficient Ethernet to minimize energy consumptionApplication: Mechanical and robotic automationIndustrial network infrastructureWind and solar energy transport shipbuilding
Spec
- Quantity: 1 piece
- RJ 45 port: 16
- Transmission speed: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s
- Transmission length: 100 (Cable) m
- Mounting: DIN Rail
- Nominal power supply Voltage: 24 V dc, 48 V dc
- Dimensions: 38 x 107.5 x 142 mm
- Weight: 670 g
- Depth: 107.5 mm
- Height: 142 mm
- Operating temperature Max: + 55 degrees C
- Maximum power supply Voltage: 60 V dc
- Operating temperature Min: 0 degrees C
- Minimum power supply Voltage: 18 V dc
- Width: 38 mm
- number of ports: 16
- RoHS compliance status: Compliance
- Securities Code: 122 -4306
