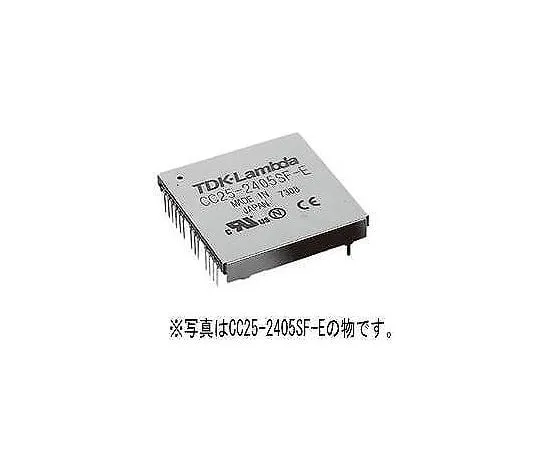

64-5663-67 Insulated DC-DC Converter 5 V 1.5 W CC1R5-1205SR-E
Product Description
Product Model: 64-5663-67Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5663-67
Product Brand: TDK-Lambda Corporation
Features
- Smaller mounting area by about half compared to conventional products
- No tantalum capacitors or aluminum electrolytic capacitors
- Built-in remote ON/OFF function in all series
- High accuracy of ±3% output voltage (14 W or less single output)
- Low noise design with 9 metal shields
- Lightweight design without resin filling
- Compatible with DIP insertion, SMD mounting, and SIP vertical insertion (7 W product)
Spec
- Output Power: 1.5 W
- Input voltage range: 12 VDC (9 ~ 18 VDC)
- Output Voltage: 5V
- Output Current: 0.3 A
- Efficiency (typ): 78%
- Operating temperature range: -40 degrees C to + 85 degrees C
- Dimensions (mm): 16.51 x 8.8 x 16.6
- Type: SMD
- RoHS compliant
