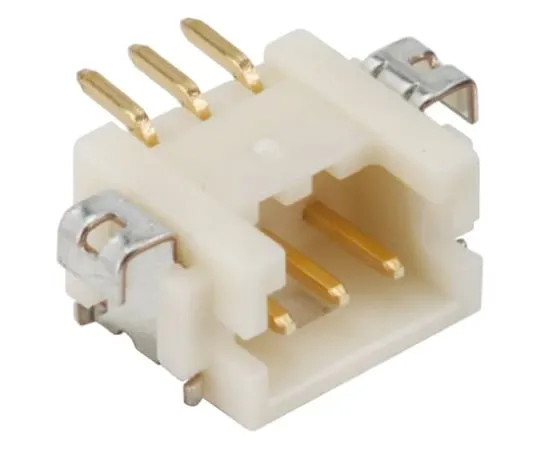

63-6823-28 Board Connection Header DF13 Series 3 Pole 1.25 mm 1 Row Light Angle 1 Set (1000 Pieces) DF13A-3P-1.25H51
Electronic/Electrical Parts and Controll Equipments

63-6823-28 Board Connection Header DF13 Series 3 Pole 1.25 mm 1 Row Light Angle 1 Set (1000 Pieces) DF13A-3P-1.25H51

model: 63-6823-28
brand: Hirose

Product Description

Product Model: 63-6823-28Product Brand: Hirose Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6823-28
Product Brand: Hirose

Features

  • Hirose Denki DF13 Series 1.25 mm PCB Header Connector
  • The DF13 Series 1.25 mm substrate header is a compact miniature design and is available in 1 and 2 row configurations. The space-saving two-column header achieves 30% higher density in the same area than the single-column configuration. The DF13 board header has a low profile of 5.8 mm (SMT straight mounting) and 5.3 mm (straight through hole mounting) from the board. The housing of these headers is a scoopproof box structure with polarized slots to prevent accidental insertion. Friction locking mechanism allows the header to be firmly connected to the engaged DF13 housing. The DF13 board header has a board mounting boss for precise alignment and placement on the board. Surface-mounted models attach firmly to the board and include metal fittings to prevent solder peeling. Some DF13 headers have a vacuum pickup area that supports automatic pick-and-place. Some products are available in embossed tape-and-reel packaging. The DF13 Series 1.25 mm board header engages the DF13 Series 1.25 mm board crimp connector housing.
  • Features and Advantages: Compact, space-saving design Two-row configuration with 30% higher density than single-row configuration with the same substrate footprint Scoop-proof housing Polarization slot to prevent erroneous insertion Friction lock mechanism to ensure mating connection Board mounting that can be accurately placed on board Boss surface mounting model mounting hardware that can be firmly attached to board Automatic pick-and-place mounting Embossed tape-and-reel packaging is available
  • Applications: The DF13 series connectors are ideal for space-saving and multi-signal demanding mobile devices. Applications include digital cameras, LDC displays, digital video recorders, car navigation systems, access control units, and measurement devices.

Spec

  • Quantity: 1 Reel (1000 Pieces)
  • Series: DF13
  • Pitch: 1.25 mm
  • Number of contacts: 3
  • Number of rows: 1
  • Body Orientation: Light Angle
  • shroud/unshroud: shroud
  • Connector System: Wire-to-Board
  • Terminal methods: solder
  • Type: Conduit to Board
  • Rated voltage: 150 V ac
  • RoHS Compliance Status: Compliance
  • Securities Code: 122-1715
