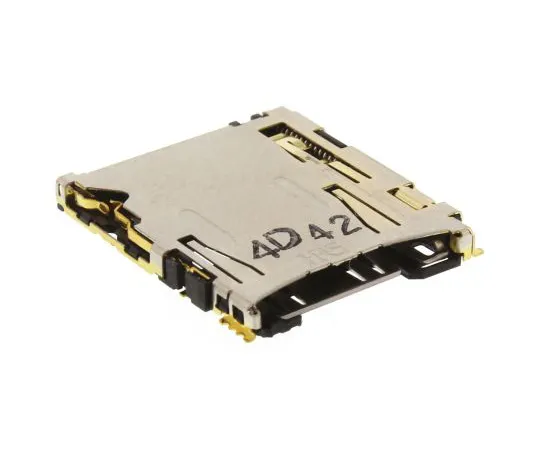

63-6822-96 Memory Card Connector MicroSD 8 Pole Female 1 Set (400 pcs) DM3AT-SF-PEJM540
Product Description
Product Model: 63-6822-96Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-6822-96
Product Brand: Hirose
Features
- Part No. DM3AT * is the Push-Push eject type mounting type (Standard) Part No. DM3BT * is the Push-Push eject type mounting type (Reverse) Part No. DM3C and CS* are the hinged Push-Pull type mounting type (Standard) Part No. DM3D * is the Push-Pull type mounting type (Standard) Part No. DM3xxx-SF-xxx Part No. DM3xxx-DSF-xxx Part No. DM3xxx-DSF-xxx Part No.
- Hirose Denki DM3 Series MicroSD Card Connector
- The DM3 series SMT-mounted microSD card connector has a small external dimension and a sturdy structure. These DM3 series microSD card connectors feature an anti-reverse card insertion structure and an N/O type card detection switch. Access to the *** leads of these DM3 series microSD card connectors facilitates inspection and reprocessing.
- Compact dimensions Sturdy construction Card backing protection 4 contacts to the board on the metal cover for EMI protection by securely connecting the ground circuit Always-open card detection switch Black LCP insulator (UL94V-0)
Spec
- Quantity: 1 Reel (400 Pieces)
- Card Type: MicroSD
- Male/Female: Female
- Number of contacts: 8
- Number of rows: 1
- Pitch: 1.1 mm
- Body Orientation: Light Angle
- Mounting type: surface mount
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Terminal methods: solder
- Housing Material: Liquid Crystal Polymer
- Length: 15.95 mm
- Width: 13.85 mm
- Depth: 1.68 mm
- Dimensions: 13.85 x 15.95 x 1.68 mm
- RoHS Compliance Status: Compliance
- Securities Code: 122-1674
