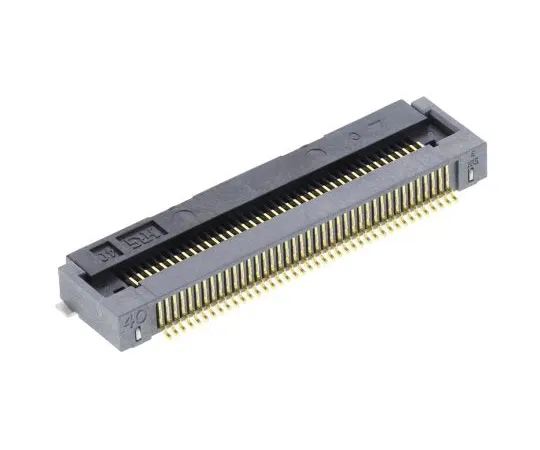

63-6822-62 FPC/FFC Connector Female 40 Pole 0.5 mm 1 Set (2000 pcs) FH28E-40S-0.5SH05
Electronic/Electrical Parts and Controll Equipments

63-6822-62 FPC/FFC Connector Female 40 Pole 0.5 mm 1 Set (2000 pcs) FH28E-40S-0.5SH05

model: 63-6822-62
brand: Hirose

Product Description

Product Model: 63-6822-62Product Brand: Hirose Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6822-62
Product Brand: Hirose

Features

  • Hirose Electric FH28 Series 0.5 mm FPC/FFC Connector
  • The FH28 0.5 mm ZIF (Zero Insertion Force) FPC/FFC connector is a rugged and durable design. The FH28 FPC/FFC connector features a sturdy flip-lock actuator supported at both ***s of the connector by stiffening brackets. The actuator is held back by hooks at each contact along its length, ensuring a secure connection and preventing the actuator from falling out. When the actuator is fully closed, a clear feel and sound indicate that it is firmly locked in place. The FH28 FPC/FFC connector has a side catch for tabbed FPC. Insert the FPC slot positioning tab in this catch to accurately position the FPC. When the actuator is secured, the tab acts as a strain relief and increases the FPC retention. The FH28 FPC/FFC connector can also be ***d with a straight FPC (tabless FPC). The bottom of the FPC/FFC connector is covered with resin and the contacts are not exposed, so the connector can be mounted on the board pattern. This FH28 0.5 mm ZIF FPC/FFC connector supports standard 0.3 mm thick FPCs. The FPC/FFC connectors on the FH28E and FH28 H have metal fittings protruding from the housing for manual soldering. The FH28H FPC/FFC connector has a narrower space-saving actuator.
  • Features & Advantages: Robust design Reinforced flip-lock actuator makes it easy to insert and hold FPC/FFC securely Clear feel and sound to confirm that the actuator is fully closed Combination of side catch and tabs improves FPC/FFC retention Sealed design allows mounting on board pattern
  • Applications: Industrial equipment Ho***hold appliances GPS navigation instruments Barcode reader Medical equipment

Spec

  • Quantity: 1 Reel (2000 Pieces)
  • Number of contacts: 40
  • Contact Material: Copper Phosphate
  • Pitch: 0.5 mm
  • Mounting type: surface mount
  • G***er: Female
  • Terminal Type: ZIF Bottom Contact
  • Body Orientation: Light Angle
  • Locking mechanism: Yes
  • Rated current: 500 mA
  • Rated voltage: 50 V ac
  • Series: FH28
  • Number of rows: 1
  • Contact Plating: Gold
  • Operating temperature Min: -40°C
  • RoHS Compliance Status: Compliance
  • Securities Code: 122-1638
