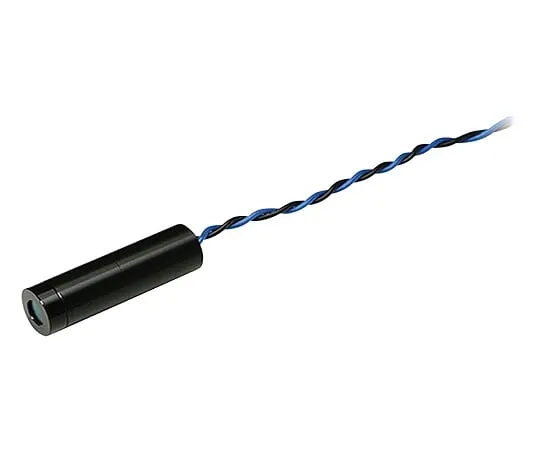

67-6434-41 Semiconductor Green Laser Light Source (Pattern Shape: Spot Approx. φ1mm) CMP-520-1-D
Product Description
Product Model: 67-6434-41Product Brand: STC Corporation […]
Contact Us
Product Details
Product Model: 67-6434-41
Product Brand: STC Corporation
Features
- Small φ12 type.
- The pattern shape has a spot line cross circle and the focus is fixed.
Spec
- Projection Distance: 400 mm Fixed
- Pattern Shape: Spot Approx. φ1mm
- Wavelength: 520 nm±10 nm
- Optical output: 1 mW or less CLASS2
- Optical axis accuracy: +/- 5°
- Average life: 10,000 hours/room temperature continuous
- Power supply voltage and current: 6.0~7.0, 50mAmax
- Connection method: twisted pair cable blue/black
- Weight: about 20 g
- Operating temperature range: -10~50°C (not to freeze)
- Operating Humidity Range: 20~85%RH (non-condensing)
- Cable length: 600 mm
- Tip Size: φ12 x 41 mm
